DENALI CANsmart™ Kit D4 – Intelligent auxiliary light package for Triumph Tiger
Awesome brightness, full control, and plug-and-play installation – tailored for your Triumph.
DENALI CANsmart™ Kit D4 for Triumph Tiger is a complete auxiliary light kit that combines the brutally bright D4 light with the intelligent control system CANsmart™ Gen II. A perfect choice for those who want extreme reach and width in the dark – without compromising on integration or functionality.
This is included in the package:
-

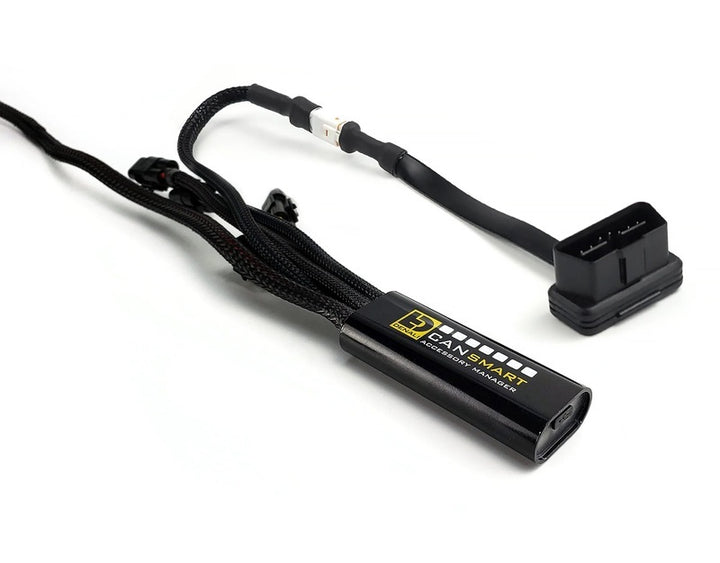

1x DENALI CANsmart™ 2.0 Plug-n-Play Controller (for Triumph)
-

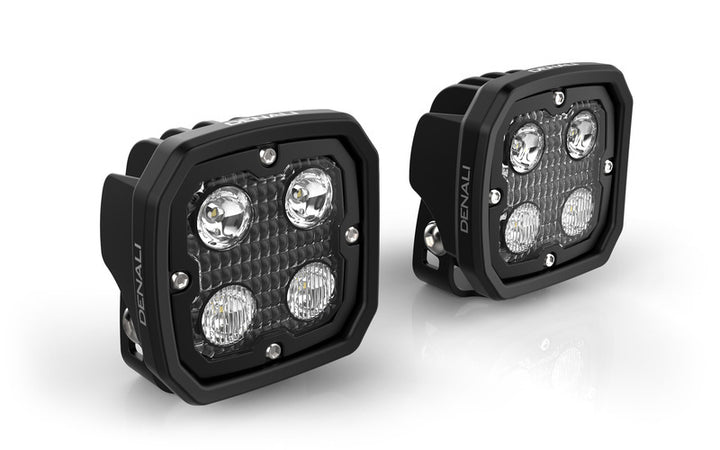

2x DENALI D4 LED auxiliary lights (4 x 10W Cree XPL HI per lamp)
D4 – Maximum performance in every detail
D4 lights deliver an intense white light with a total of 8760 lumens, with a range of 243 meters in spot mode. The smart TriOptic™ lens solution gives you three different light patterns:
-
True-Hybrid™ (pre-installed): 170 m forward, 42 m width
-
Spot lenses (included): 240 m range, 33 m width
-
Combination (Spot + Hybrid): 190 m range, 42 m width
The housing is built to withstand impacts and weather – with cast cooling fins, powder-coated surface, and corrosion-resistant Impact PC™ frame. Recommended for mounting on crash bars or other robust fixtures.
CANsmart™ Gen II – The brain behind the system

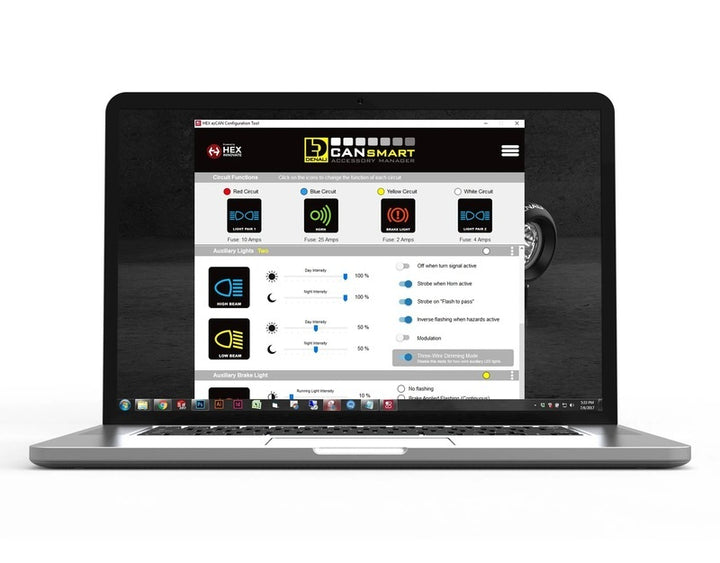

With the upgraded CANsmart™ module, you get smoother plug-and-play connection to Triumph's CAN-bus system. It controls up to four accessories – e.g., auxiliary lights, brake lights, horn, and GPS – directly via the original controls or with CANsmart™ software.

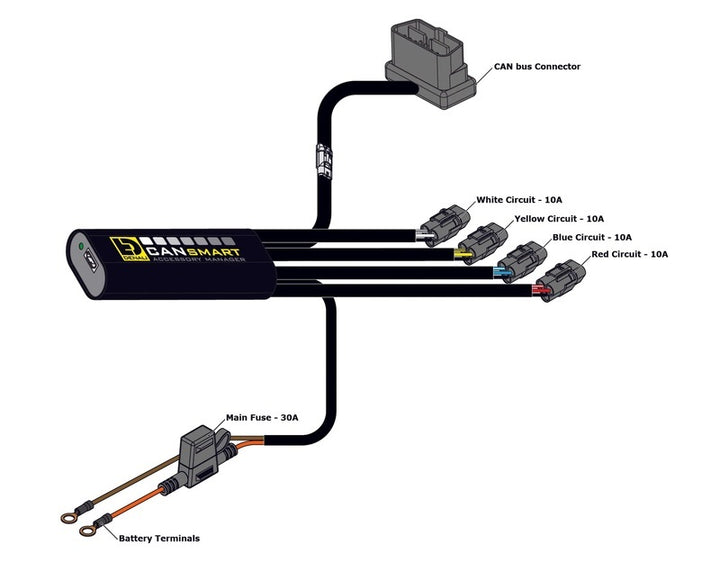

Each circuit can deliver up to 10A continuously and can be configured freely.
Features of CANsmart™ Gen II:
-

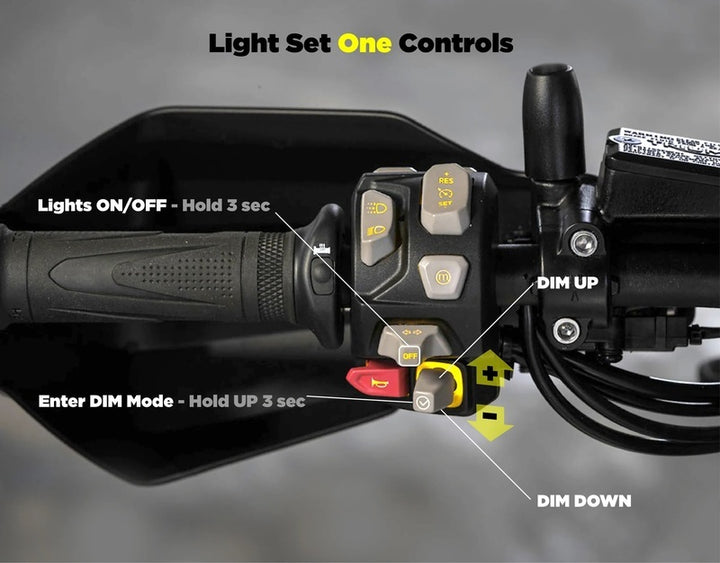

High/Low Sync: Let auxiliary lights switch between dim and high beam with the original button
-
Individual ON/OFF and dimming of two light zones (day/night)
-
Modulating light: To be more visible in traffic
-
Flash to Pass: High beam button three times = lights strobe
-
Turn signal shutdown: Turns off lights on the same side to avoid glare
-
Reverse flashing with hazard lights: For emergencies
-
Plug & Play for horn: No extra wiring required
-
Strobe with horn: Makes auxiliary lights flash with the signal horn
-
Smart Brake: Activates auxiliary brake lights when braking before you touch the brake lever
-
Brake light blinking pattern: Four modes, including legal ones for e.g., California
-
Switched Power Source: 12V ignition-controlled power for GPS, phone, etc.
-
Delayed shutdown: Accessories can receive power for up to 30 seconds after shutdown
Specifications – D4 light:
-
LED: 4 x 10W Cree XPL HI per lamp
-
Power consumption: 6.6 A (total)
-
Light output: 8760 lumens
-
Range (spot): 243 m
-
Width (spot): 33 m
-
Voltage: 12V
-
Dimensions: Ø89 mm x 66 mm
-
Compatible with DataDim™

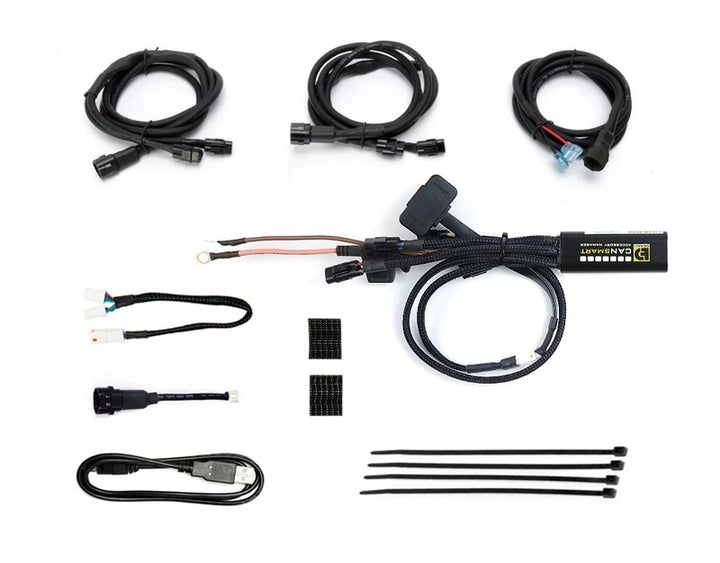

In the package:
-
CANsmart™ Controller
-
2x 1.7 m light extension cables
-
1x 1.5 m SoundBomb horn extension
-
B6 brake light adapter
-
CAN-bus splitter
-
Zip ties
-
Velcro fastener
-
Micro-USB cable
Summary:
DENALI CANsmart™ Kit D4 for Triumph Tiger is a lighting system for those who demand the best. Whether you're riding long, late, or just want maximum visibility, the D4 lights give you the power to see – and be seen. Together with CANsmart™, you get a fully integrated and programmable solution that provides you with safety, flexibility, and style.
