DENALI CANsmart™ Kit D3 Fog Lights KTM

DENALI CANsmart™ Kit D3 Fog Lights – Street Legal Power Pack for KTM

When visibility fails, D3 delivers – and with surgical precision.

DENALI CANsmart™ Kit D3 Foglight for KTM is a complete, plug-and-play auxiliary light kit with fog lights that not only illuminate the road but are also legal according to both European ECE and American SAE/DOT regulations. The integrated CANsmart™ Gen II controller makes installation easy and allows total control over the light directly from your KTM.

This includes:

• 1x DENALI CANsmart™ Gen II Controller – KTM

• 2x DENALI D3 LED fog lights (2800 lumens each)

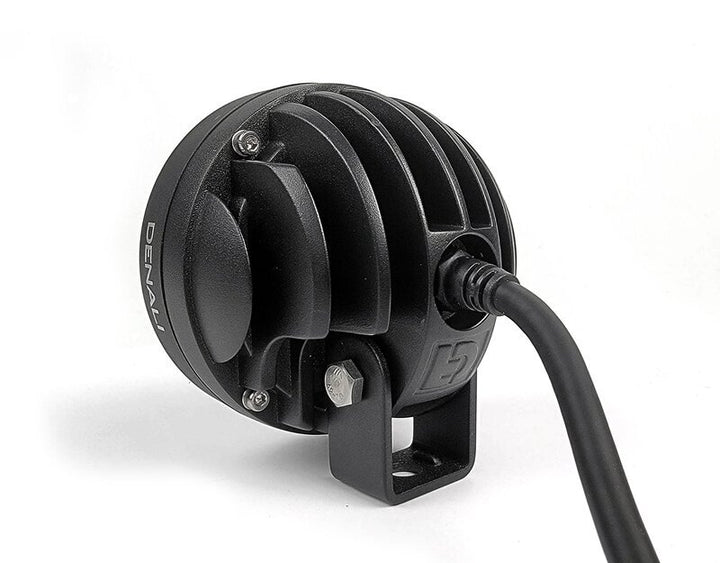

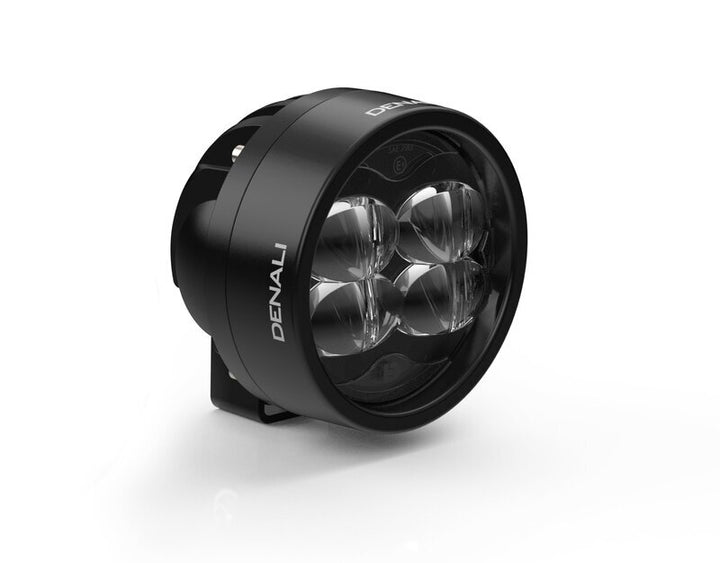

D3 – Street Legal, Uncompromising, and Razor Sharp

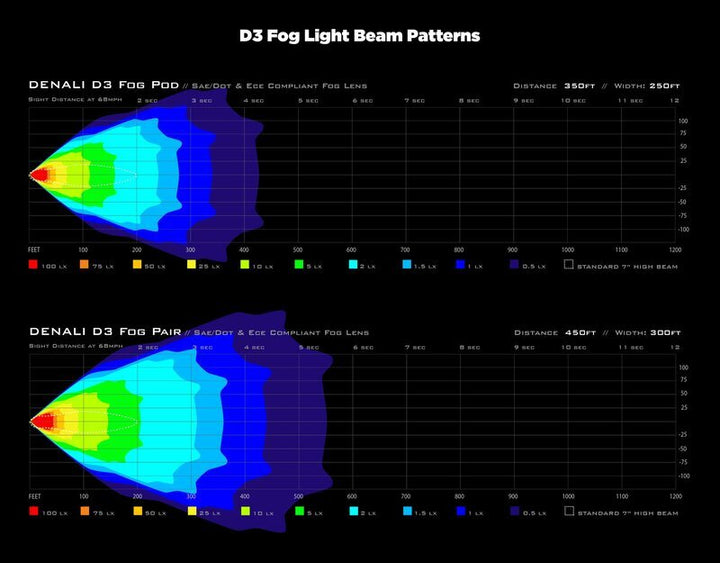

D3 is the result of over a decade of DENALI innovation. The specially designed fog light lens is constructed to deliver maximum allowable light output according to regulations – which practically gives you a wide light pattern at 91 meters and a range of 137 meters at 1 lux (per pair).

Want more than just fog lights? D3 also comes with the TriOptic™ system where you can switch to a spot or hybrid lens to transform your legal fog lights into high-performance driving lights when needed.

Features – D3 Lights:

• 2800 lumens per lamp

• 4 x 11W Cree XP-P LEDs per pod

• Beam: 137 m long / 91 m wide (fog beam)

• Compatible with DataDim™ control

• Power consumption: 40W (3.3A)

• Voltage: 9–32V DC

• Dimensions: Ø90 mm x 76 mm

• Certification: SAE/DOT J583 & ECE R19

• Waterproof: IP67 (submersible)

• Available with amber & yellow lens (sold separately)

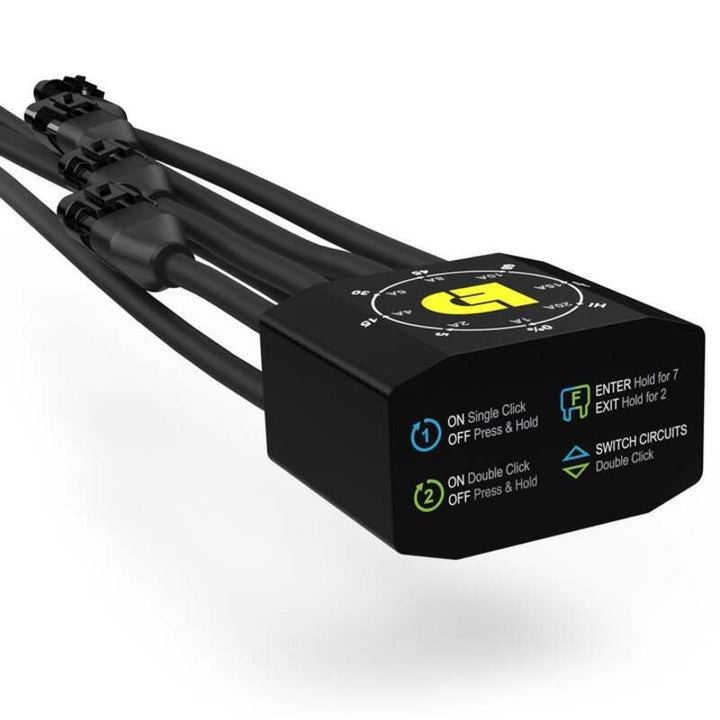

CANsmart™ Gen II – KTM-Specific Smart Control

Control up to four accessories via KTM's original buttons or CANsmart™ Accessory Manager Software. All functions are pre-programmed but can be customized exactly to your needs – lights, brake lights, horn, and more.

Features of CANsmart™ Gen II:

• High/Low Sync: Automatically switch between low and full brightness

• ON/OFF and dimming: Adjust intensity and control two light zones independently

• Modulating light: Increases visibility in daylight

• Flash to Pass: Flashes quickly to alert other road users

• Turn Signal Shutdown: Turns off lights on the flashing side

• Inverse strobe with hazard lights

• Strobe with horn: The light flashes automatically when you honk

• Smart Brake: Activates brake lights before you even touch the brake lever

• Four different flash patterns for brake lights

• Switched Power: Provides clean 12V power that turns off/on with the ignition

• Delayed shutdown: Up to 30 seconds of afterglow

• Perfect for GPS, charging, heated vests, etc.

In the package:

• CANsmart™ Controller

• 2x 1.7 m light extension cables

• 1x 1.5 m SoundBomb horn extension

• B6 brake light adapter

• Stainless steel holder and screw kit

• Wire connectors, zip ties, and Velcro

• Micro-USB programming cable

Summary:

DENALI CANsmart™ Kit D3 Foglight for KTM is more than just a fog light – it is a versatile, legal, and high-performance auxiliary light that can be adapted for all conditions. Combine it with the CANsmart™ controller and you get a system that not only illuminates the road – it transforms how you experience it. Perfect for both asphalt and gravel adventures.
